How Sewing Machines Work: Understanding Threading, Timing, and Stitch Formation
Sewing machines may look complex at first glance, but at their core, they rely on a beautifully synchronized dance between thread, needle, and hook. If you've ever wondered how a sewing machine turns two spools of thread into a secure stitch, let’s break it down.
The Basics: Upper Threading and Lower Threading
At the heart of every sewing machine is a system of two threads: the upper thread and the lower thread. These threads interlock to form a stitch, and each has a specific pathway through the machine.
Upper Threading
The upper thread begins on a spool mounted on top of the machine. It travels through a series of tension discs (which control thread tightness), a take-up lever (which moves the thread up and down with the needle), and finally through the eye of the needle. Proper threading of this path is crucial—any misstep can lead to poor stitch quality or thread breakage.
Lower Threading (The Bobbin)
The lower thread is wound onto a small spool called a bobbin, which sits in a case below the needle plate. This bobbin is housed in either a front-loading or drop-in bobbin system. The machine's hook mechanism spins around the bobbin to catch the upper thread and create stitches.
The Dance of Timing
Timing is everything in a sewing machine. If the needle and the hook are even slightly out of sync, the machine won’t sew correctly.
Here’s what needs to happen:
As the needle moves down into the fabric, it carries the upper thread with it.
Just as the needle starts to rise again, it forms a small loop of thread at the back.
At that precise moment, the rotating hook (part of the lower mechanism) swoops in to catch this loop.
The hook pulls the loop around the bobbin, entangling the upper and lower threads.
If this timing is even a fraction of a second off, the hook might miss the loop altogether—leading to skipped stitches or a jammed machine.
Making the Stitch: The Lockstitch
Most home sewing machines use a type of stitch called the lockstitch. This stitch is strong, versatile, and formed by locking the upper and lower threads together in the fabric.

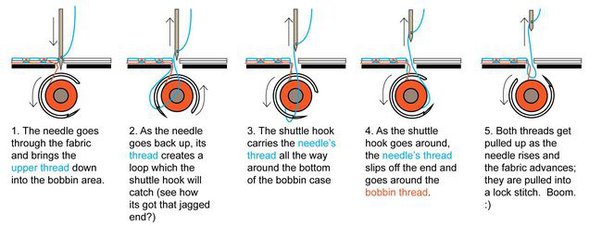

The sequence:
1. The needle punctures the fabric, carrying the upper thread down.
2. As the needle begins to rise, it creates a loop.
3. The rotating hook catches this loop and pulls it around the bobbin case.
4. The upper thread wraps around the bobbin thread.
5. The take-up lever pulls the upper thread tight, locking the two threads in the fabric.
6. The feed dogs move the fabric forward for the next stitch.
This all happens incredibly fast—many machines can make hundreds or even thousands of stitches per minute. Despite the speed, the process remains precise.
Why It Matters
Understanding how upper and lower threading works, and how timing affects stitch formation, can help troubleshoot common problems like:
Skipped stitches
Loose or tight threads
Bird’s nests under the fabric
Broken needles or thread
When you know what’s happening under the hood, you're better equipped to adjust tension, rethread properly, or even time the machine (if you're feeling ambitious).
---
A sewing machine is a marvel of mechanical engineering. With just two threads, a needle, and a hook, it creates precise, secure stitches that hold garments, quilts, and crafts together. The next time you hear the hum of your machine, you’ll know just how much coordination goes into every single stitch.
