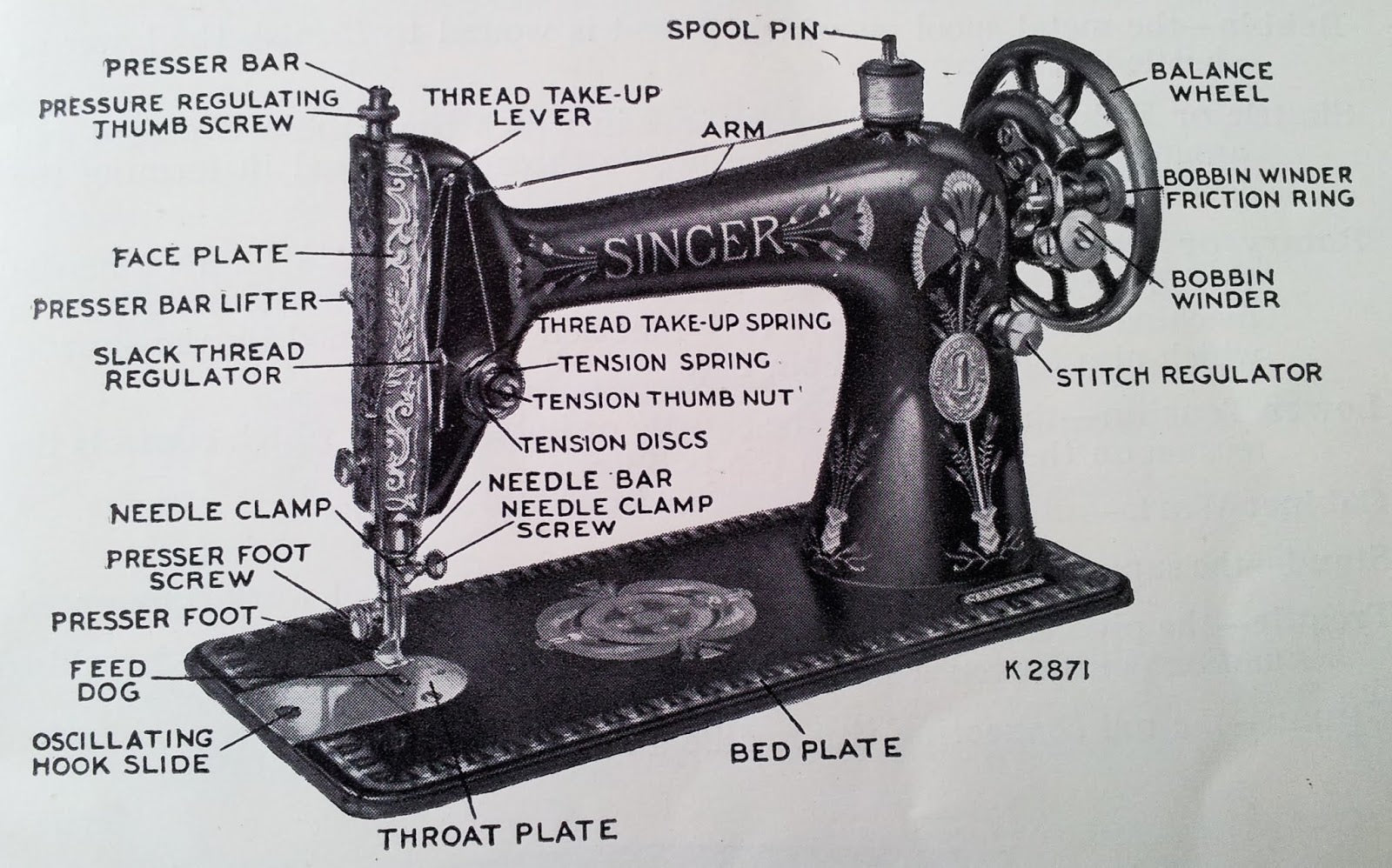

Identifying the Various Parts of a Typical Sewing Machine
A sewing machine is a powerful tool that has revolutionized the world of fabric crafting, garment making, and home decor. While modern machines come with a variety of features and technological enhancements, the core structure remains consistent across most models. If you're a beginner or looking to brush up on your knowledge, understanding the different parts of a sewing machine is essential for efficient use and maintenance. In this post, I’ll break down the various components of a typical sewing machine and explain their functions.
---
1. Spool Pin
Function: Holds the spool of thread.
Usually located at the top of the machine, the spool pin can be vertical or horizontal. Its main job is to allow the thread to unwind smoothly as the machine sews.
---
2. Bobbin and Bobbin Case
Function: Supplies the lower thread in the stitch formation.
The bobbin is a small spool that holds the bottom thread. It's placed in the bobbin case and sits either under the needle plate or in a front-loading or top-loading compartment.
---
3. Thread Guides
Function: Direct the thread from the spool to the needle.
These small loops or hooks help guide the thread in a specific path, preventing tangles and ensuring consistent tension.
---
4. Tension Dial
Function: Controls the tightness of the upper thread.
Proper tension ensures that the stitches are even and secure. If the thread is too tight or too loose, the stitch quality will be compromised.
---
5. Take-Up Lever
Function: Moves up and down to pull thread from the spool and feed it to the needle.
The take-up lever works in harmony with the needle, ensuring that the correct amount of thread is released during stitching.
---
6. Needle and Needle Clamp
Function: Pierces the fabric and carries the upper thread through it.
The needle is secured in place by the needle clamp. Different fabrics and threads require different needle types and sizes.
---
7. Presser Foot
Function: Holds the fabric in place while sewing.
The presser foot works with the feed dogs to guide the fabric through the machine. There are many types of presser feet for various tasks like zippers, buttonholes, and quilting.
---
8. Feed Dogs
Function: Move the fabric forward with each stitch.
Located beneath the presser foot, these small metal teeth grip the fabric and help move it evenly during sewing.
---
9. Throat Plate (Needle Plate)
Function: Covers the bobbin and provides a smooth surface for fabric movement.
It usually has seam guides etched onto it, helping sewists maintain consistent seam allowances.
---
10. Stitch Selector
Function: Allows the user to choose different types of stitches.
Most machines come with various stitch options like straight, zigzag, stretch, and decorative stitches. This dial or button panel is used to switch between them.
---
11. Hand Wheel
Function: Manually raises and lowers the needle.
Located on the side of the machine, the hand wheel gives precise control—useful when starting or finishing a stitch.
---
12. Reverse Lever or Button
Function: Enables stitching in reverse to secure seams.
This feature is vital for reinforcing the beginning and end of seams to prevent unraveling.
---
13. Foot Pedal
Function: Controls the sewing speed.
The foot pedal acts like a gas pedal in a car. Pressing harder increases the speed, while easing off slows it down.
---
14. Power Switch
Function: Turns the sewing machine on or off.
An obvious but crucial part of using any electric sewing machine.
---
15. Light
Function: Illuminates the workspace.
Many sewing machines come with built-in LED or bulb lights to help users see their work clearly.
---
Knowing the parts of a sewing machine and how they work together not only improves your sewing skills but also empowers you to troubleshoot minor issues and perform regular maintenance. If you’re threading the machine, changing a needle, or selecting a stitch, each part plays a crucial role in the overall operation.
Understanding your sewing machine is the first step toward mastering the art of sewing. So, the next time you sit down at your machine, take a moment to appreciate its design and mechanics—you’ll sew more confidently and effectively.
