🧩 What Is Thread Tension?

When your stitches start looking loopy, tight, or uneven, one of the first things to check is your thread tension. Often overlooked by beginners and even seasoned sewists, thread tension plays a critical role in the quality, strength, and appearance of your stitches.

Thread tension refers to how tightly your sewing machine pulls the thread as it forms each stitch. There are two main threads at work: the top thread (from the spool) and the bobbin thread (from below). These threads need to meet and lock together between layers of fabric. If either thread is too tight or too loose, the balance is off — and your stitches will show it.

Upper (Top) Thread Tension

Adjusted via a numbered dial on the machine. Controls how tightly the top thread is pulled as it forms each stitch. Most machines number this 0–9, with 4–5 being the standard starting point.

Lower (Bobbin) Thread Tension

Adjusted via a small screw on the bobbin case. Usually set at the factory and rarely needs adjustment — but understanding it is essential for diagnosing persistent tension problems.

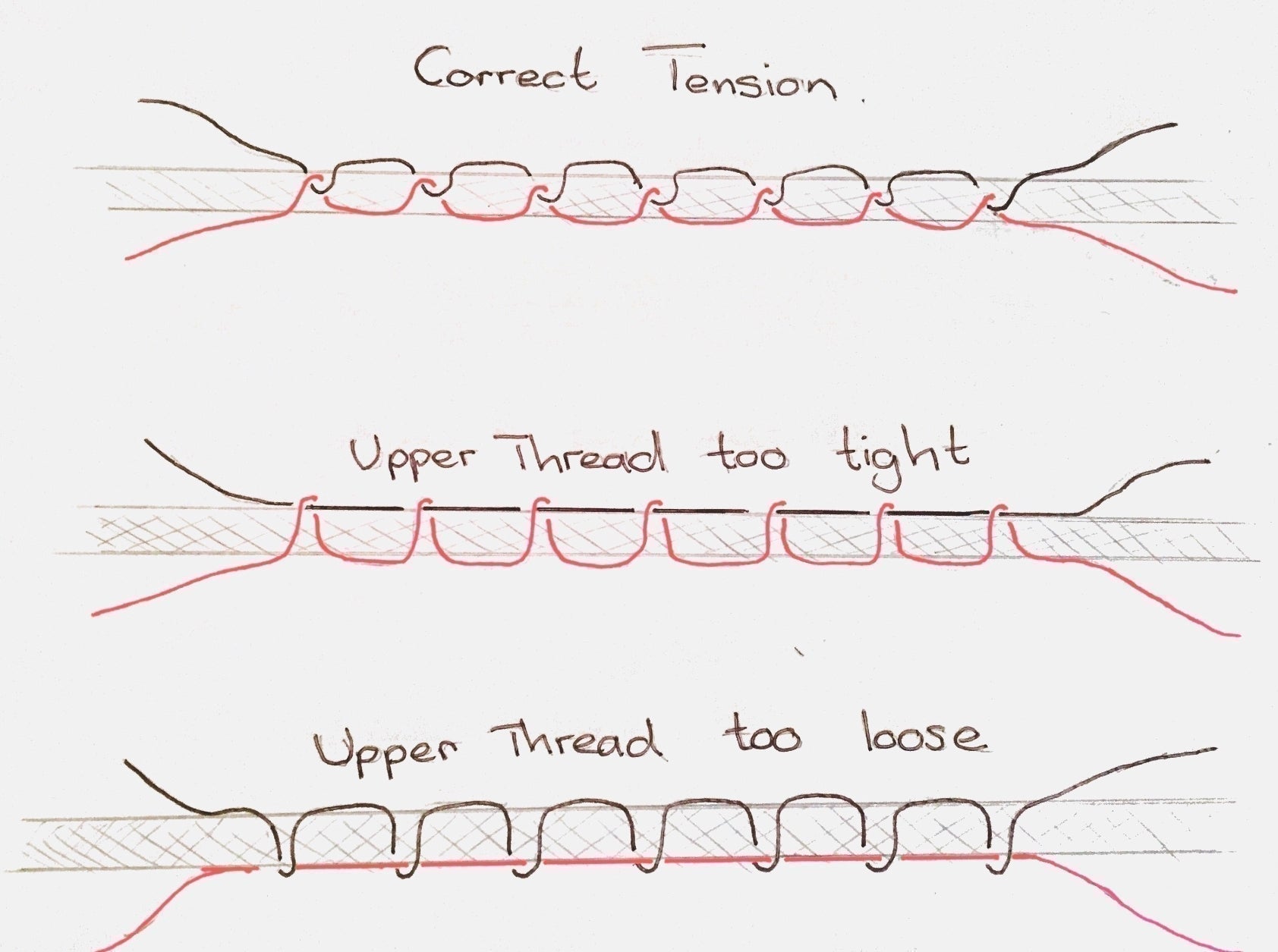

💡 Perfect tension creates balanced stitches — the threads lock invisibly within the fabric layers without loops on top or bottom. Both sides of the fabric should look identical.

🔍 Signs of Incorrect Thread Tension

Top too tightBobbin thread gets pulled up to the top surface. Fabric puckers. Stitches look tight and uneven on the top.
Top too looseLoops or knots of top thread appear on the underside of the fabric. Top stitches look flat but the back is messy.
Bobbin too tightTop thread is pulled to the underside. Looks similar to top tension too loose — but adjusting the top tension dial doesn’t fix it.
Bobbin too looseBobbin thread loops on the underside. Stitches look correct on top but the back is loopy.
BalancedBoth threads lock invisibly within the fabric layers. Both sides look smooth and identical.
💡 The golden rule of tension diagnosis: The thread that appears on the wrong side is the thread that is too tight — not too loose. If you see top thread on the bottom, the top tension is too tight (or the bobbin is too loose). If you see bobbin thread on the top, the bobbin tension is too tight (or the top is too loose).

📏 Step-by-Step Tension Diagnosis

Before touching any tension settings, work through this systematic process. Most tension problems are caused by threading errors or machine maintenance issues — not the tension dial itself.

  1. 1
    Re-thread the machine completely with the presser foot raised. The presser foot must be up when threading — this opens the tension discs so the thread seats correctly. This single step fixes the majority of tension problems.
  2. 2
    Remove and re-insert the bobbin. Check that the bobbin is wound evenly and inserted in the correct direction for your machine (clockwise or counterclockwise — check your manual). A bobbin inserted backward causes immediate tension problems.
  3. 3
    Check the needle. A bent, blunt, or incorrectly installed needle causes skipped stitches and tension inconsistencies. Replace the needle and ensure it is fully inserted with the flat side facing the correct direction.
  4. 4
    Clean the machine. Remove the bobbin and bobbin case and brush out all lint. Lint in the tension discs or bobbin area physically prevents the thread from seating correctly and mimics tension problems.
  5. 5
    Sew a test seam on scrap fabric — the same fabric and thread you’ll use for your project. Examine both sides. Is the tension balanced now?
  6. 6
    If still unbalanced, adjust the top tension dial by one number at a time. Sew a test seam after each adjustment. Move toward lower numbers if the top thread is too tight; move toward higher numbers if the top thread is too loose.
  7. 7
    Only adjust bobbin tension as a last resort — after all other steps have been tried. See the bobbin tension section below for guidance.

📏 Tension Settings by Thread Weight

These are starting points — always test on scrap fabric before sewing your final piece.

Thread Weight Top Tension Setting Notes
30 wt (heavy — topstitch, upholstery) 2–3 Heavy thread needs less tension to avoid pulling the bobbin thread up
40 wt (quilting, decorative) 3–5 Common for quilting and decorative stitching
50 wt (standard all-purpose) 4–5 The default starting point for most sewing
60+ wt (fine — silk, lingerie) 5–6 Fine thread needs more tension to lock properly
Metallic thread 2–3 Metallic thread is fragile — lower tension reduces breakage
Elastic / shirring thread (bobbin) Top: 4–5, Bobbin: loose Wind elastic thread on bobbin by hand; loosen bobbin tension slightly

🔧 Bobbin Tension: When and How to Adjust It

Bobbin tension is the most misunderstood part of sewing machine tension. Most sewists are told “never touch the bobbin tension” — and for everyday sewing, that’s good advice. But understanding it is essential for diagnosing persistent problems and for specialty techniques.

When Bobbin Tension Needs Adjustment

  • You’ve re-threaded, replaced the needle, cleaned the machine, and adjusted the top tension — and the problem persists
  • You’re using a specialty thread in the bobbin (elastic, heavy thread, metallic) that requires different tension than standard thread
  • You’re doing free-motion quilting or embroidery where the bobbin thread is meant to show on the top
  • Your machine has been serviced and the bobbin tension was reset incorrectly

How to Test Bobbin Tension

  1. 1
    Remove the bobbin case and thread it with your bobbin thread as normal.
  2. 2
    Hold the bobbin case by the thread end and let it dangle. Give the thread a gentle jerk upward.
  3. 3
    Correct tension: The bobbin case drops slightly with the jerk, then stops. It should feel like a yo-yo — a little give, then resistance.
  4. 4
    Too tight: The bobbin case doesn’t move at all when you jerk the thread.
  5. 5
    Too loose: The bobbin case drops freely without resistance.

How to Adjust Bobbin Tension

  • Locate the small flat-head screw on the side of the bobbin case (not the drop-in bobbin holder — those have limited adjustability)
  • Turn clockwise (right) to tighten — “righty tighty”
  • Turn counterclockwise (left) to loosen — “lefty loosey”
  • Make very small adjustments — a quarter turn at a time. The screw is extremely sensitive.
  • Test after each adjustment with a scrap seam
💡 Pro tip: If you adjust your bobbin tension for a specialty project, mark the original position with a tiny dot of nail polish before turning the screw. This lets you return to the factory setting exactly. Many experienced sewists keep a second bobbin case specifically for specialty techniques so the main case stays at the factory setting.

🧵 Factors That Affect Tension

Thread Type & Weight

  • Thick threads (topstitch, upholstery) need lower top tension
  • Thin threads (silk, embroidery) may need higher top tension
  • Metallic thread needs lower tension to prevent breakage

Fabric Type

  • Heavy fabrics (denim, canvas): may need increased tension
  • Lightweight fabrics (chiffon, silk): lower tension prevents puckering
  • Knits: use a stretch stitch and slightly lower tension

Needle Size & Type

  • Mismatched needles cause skipped stitches and tension inconsistencies
  • Use the correct needle type for knit, woven, leather, denim, etc.
  • A dull or bent needle disrupts the thread path and mimics tension problems

Machine Cleanliness

  • Lint in the tension discs physically prevents the thread from seating correctly
  • Lint in the bobbin area causes bobbin thread to feed unevenly
  • Clean the machine after every major project — more often with fluffy fabrics like fleece

🔍 Expanded Troubleshooting Guide

Symptom Most Likely Cause Fix
Loops on the bottom of the fabric Top tension too loose, or machine not threaded with presser foot up Re-thread with foot up; increase top tension by 1–2 numbers
Loops on the top of the fabric Bobbin tension too loose, or bobbin inserted incorrectly Re-insert bobbin; check bobbin direction; test bobbin tension
Fabric puckering along the seam Top tension too tight, or wrong needle for fabric Lower top tension; switch to correct needle; reduce presser foot pressure
Stitches skipping Bent or blunt needle, wrong needle type, or machine not threaded correctly Replace needle; re-thread; ensure needle is fully inserted
Thread breaking frequently Top tension too tight, thread caught on spool, or needle eye too small Lower top tension; check spool is seated correctly; use correct needle size
Bobbin thread breaking Bobbin tension too tight, bobbin wound unevenly, or lint in bobbin area Clean bobbin area; re-wind bobbin evenly; loosen bobbin tension slightly
Tension looks correct on scrap but wrong on real fabric Different fabric weight or weave requires different tension Always test on the exact fabric you’ll use — not a substitute
Tension was fine, now suddenly wrong Lint build-up, needle hit a pin and bent, or thread slipped out of a guide Re-thread completely; replace needle; clean machine

🌟 Balancing Tension for Specialty Techniques

Free-Motion Quilting

Lower the feed dogs and use a darning foot. Requires careful balance of both tensions — start at standard settings and adjust based on test stitching. The bobbin thread often needs to be slightly looser so it doesn’t pull to the top during multidirectional stitching.

Twin Needle Stitching

Uses two top threads and one bobbin thread. Often needs slightly higher top tension to prevent the bobbin thread from showing between the two needle lines. Reduce stitch length slightly to prevent skipped stitches.

Elastic / Shirring

Wind elastic thread on the bobbin by hand (not too tight). Set top tension to standard (4–5). The elastic thread in the bobbin gathers the fabric as you sew. If gathering is insufficient, slightly loosen the bobbin tension or increase the stitch length.

🌟 Practice Exercise: The Tension Test Sampler

The best way to understand tension is to deliberately create and then fix tension problems on scrap fabric. This exercise takes about 30 minutes and gives you hands-on experience with every tension scenario covered in this guide.

What You’ll Need

  • Scraps of three different fabric weights: lightweight (cotton lawn or chiffon), medium-weight (quilting cotton), and heavy (denim or canvas)
  • Standard all-purpose thread (50 wt) in a color that contrasts with your fabric
  • A notebook to record your settings

Exercise Steps

  1. 1
    Start with the medium-weight fabric. Thread the machine correctly with the presser foot up. Set top tension to 4. Sew a 4” test seam and examine both sides. This is your baseline — both sides should look identical.
  2. 2
    Deliberately create too-tight tension. Set top tension to 8 or 9. Sew a test seam. Observe the puckering and the bobbin thread being pulled to the top. This is what over-tight tension looks like.
  3. 3
    Deliberately create too-loose tension. Set top tension to 1 or 2. Sew a test seam. Observe the loops of top thread on the underside. This is what under-tight tension looks like.
  4. 4
    Return to balanced tension by adjusting back to 4–5 and confirming the seam looks correct on both sides.
  5. 5
    Switch to the lightweight fabric. Sew at tension 4–5 and observe — does it pucker? If so, lower the tension by 1 and test again until balanced.
  6. 6
    Switch to the heavy fabric. Sew at tension 4–5 and observe. You may need to increase tension slightly for clean stitch formation through thick layers.
  7. 7
    Record your findings — note the tension setting that produced balanced stitches for each fabric. This becomes your personal tension reference chart for future projects.
💡 Label each test seam with the tension setting and fabric type using a fabric pen. Keep the sampler near your machine as a quick reference. Over time, you’ll develop an instinct for the right tension setting before you even sew a test seam — but the sampler gets you there faster.

Understanding and adjusting thread tension is like tuning a musical instrument — once you get it right, everything sings. With a little practice and attention, you’ll have smooth, balanced stitches that hold your projects together beautifully.
