Choosing and Installing Zippers

🧩 Choosing the Right Zipper

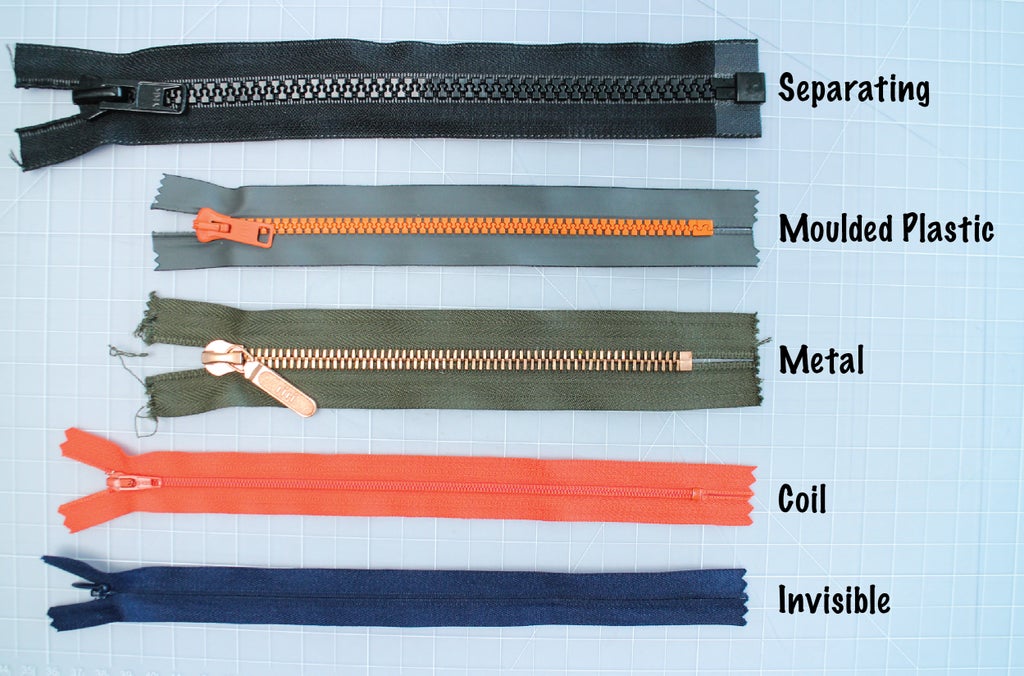

Zipper Types

Zipper Sizes

Zipper Tape Types

⚙ Tools & Materials

📏 Step-by-Step: Installing a Zipper

1. 1
   Prepare the Fabric — Align fabric edges properly and press the seam where the zipper will go so it's flat and smooth

1. 2
   Mark the Zipper Placement — Place zipper right side down along the seam edge and mark where the teeth will sit using chalk or a fabric pen

1. 3
   Pin the Zipper in Place — Lay zipper along the marked seam with teeth just inside the seam line; pin or clip straight and aligned

1. 4
   Attach the Zipper Foot — Switch to a zipper foot so you can sew right next to the zipper teeth

1. 5
   Sew the Zipper — Sew from the top, keeping needle close to teeth. When you reach the pull, stop, lift the foot, move the pull out of the way, then continue. Flip and topstitch to keep fabric away from teeth

1. 6
   Press the Zipper — Press with an iron (use a pressing cloth if needed) so the fabric lies flat and the finish looks professional

1. 7
   Finish the Seam — Sew the rest of the seam and finish edges with a serger or zigzag stitch to prevent fraying

1. 8
   Test the Zipper — Zip up and down a few times to ensure teeth align properly and there are no obstructions

1. 9
   Finish the Top — Double fold the top edge and stitch down

📏 Step-by-Step: Installing an Invisible Zipper

Invisible zippers require a slightly different technique than standard zippers. The key difference is that the coil is pressed open before sewing, and the zipper is sewn before the seam below it is closed.

1. 1
   Press the zipper coil open — Using a low-heat iron or your fingernail, gently uncurl the coil of the invisible zipper so it lies flat. This is what makes the zipper truly invisible when sewn.
2. 2
   Mark the seam allowance — On the right side of each fabric piece, mark the seam allowance line (typically ⅝ inch). This is where the zipper tape edge will align.
3. 3
   Pin the first side — Open the zipper. Place the right side of the zipper tape against the right side of the fabric, with the coil sitting directly on the seam line. Pin in place from top to bottom.
4. 4
   Attach an invisible zipper foot — Use an invisible zipper foot (or a standard zipper foot positioned to the side). The groove of the invisible zipper foot guides the coil as you sew.
5. 5
   Sew the first side — Sew as close to the coil as possible, stopping when the foot reaches the zipper pull. Backstitch to secure.
6. 6
   Pin and sew the second side — Close the zipper. Align the second tape to the opposite fabric piece, right sides together. Open the zipper again and sew the second side the same way.
7. 7
   Close the remaining seam — Switch to a regular zipper foot. Starting just below where the zipper stitching ends, sew the rest of the seam closed. Overlap the zipper stitching by a few stitches to avoid a gap.
8. 8
   Press and test — Press the seam from the wrong side. Close the zipper — the teeth should disappear completely into the seam.

📏 Shortening a Zipper

This procedure works for coil, invisible, plastic, and metal zippers.

Step 1: Measure and Mark

1. 1
   Measure the required zipper length
2. 2
   Add 1–2 cm (½–¾") extra
3. 3
   Mark this point below the zipper pull while the zipper is fully closed — do NOT cut yet

Step 2: Create a New Bottom Stop (Most Important!)

Step 3: Test the Stop

1. 1
   Slowly pull the zipper down and confirm the pull stops firmly at the new stop
2. 2
   Pull gently — do not force
3. 3
   If the pull slips past: add more stitches and make the stop thicker. Do not proceed until this works

Step 4: Cut the Excess Zipper

1. 1
   Cut the zipper tape 1–2 cm below the new stop
2. 2
   Seal raw edges: zigzag stitch, Fray Check, clear nail polish, or burn with a lighter

Step 5: Final Functional Test

• Open and close the zipper 10 times
• The pull does not come off
• Teeth remain aligned
• Zipper moves smoothly

🔍 Expanded Troubleshooting Guide

Zipper problems are common — even for experienced sewists. Here's how to diagnose and fix the most frequent issues:

• Zipper won't close properly / teeth separate after closing: The zipper pull may be worn out and no longer gripping the teeth tightly. Try squeezing the pull gently with pliers to tighten it. If the teeth themselves are damaged or bent, the zipper will need to be replaced.
• Fabric is puckering along the zipper: The fabric was not pressed flat before installation, or the stitching tension is too tight. Remove the zipper, press the seam thoroughly, and re-sew with a slightly looser tension setting.
• Stitching is crooked or veering away from the teeth: The zipper foot was not positioned correctly, or the zipper shifted while sewing. Always baste the zipper in place first and sew slowly. Use fabric clips instead of pins near the teeth to prevent shifting.
• Zipper pull gets stuck mid-zip: A thread or fabric edge is caught in the teeth. Gently work the pull back and forth without forcing it. Use a seam ripper to free any caught threads, then topstitch the fabric edge further away from the teeth.
• Fabric is caught in the zipper teeth: The seam allowance is too narrow or the topstitching is too close to the teeth. Re-press the seam allowance away from the teeth and add a second row of topstitching to hold it back.
• Zipper looks twisted or uneven when closed: The two sides of the zipper were not aligned evenly when pinned. Always close the zipper and check alignment before sewing. Mark matching notches on both fabric pieces and the zipper tape to keep everything lined up.
• Invisible zipper is visible when closed: The coil was not pressed open enough before sewing, or the stitching didn't get close enough to the coil. Re-press the coil flat and re-sew, guiding the coil directly into the groove of the invisible zipper foot.
• Zipper tape is puckering at the top or bottom: The zipper is longer than the opening and the excess wasn't managed properly. Always baste the top and bottom of the zipper tape flat to the seam allowance before finishing the garment edges.

🧴 Zipper Care & Maintenance

A well-maintained zipper lasts the life of the garment. Here's how to keep yours working smoothly:

• Lubricate stiff zippers: Run a bar of beeswax, a white candle, or a graphite pencil along the teeth to reduce friction. Zipper lubricant sprays are also available and work well on metal zippers.
• Always close zippers before washing: Open zippers can snag other garments in the wash and cause the teeth to warp. Zip up fully before placing in the machine.
• Wash on a gentle cycle: High-speed agitation can stress zipper tape and bend teeth, especially on metal zippers. Use a mesh laundry bag for extra protection.
• Avoid ironing directly over the zipper pull: High heat can warp plastic pulls and discolor metal ones. Always use a pressing cloth and iron around the pull, not over it.
• Store garments with zippers partially open: Leaving a zipper fully closed under tension (especially in storage) can cause the tape to stretch and the teeth to misalign over time.
• Check the pull periodically: If a pull feels loose or the zipper starts to separate after closing, gently squeeze the pull with needle-nose pliers to tighten the grip before it becomes a bigger problem.

🌟 Practice Exercise: Sew a Zippered Pouch

The best way to build zipper confidence is to practice on a low-stakes project before tackling a garment. A simple zippered pouch is perfect — it uses a standard lapped zipper installation and gives you a useful finished item.

1. 1
   Cut two rectangles of cotton fabric — each 10 inches wide by 7 inches tall. These will be the front and back of your pouch.
2. 2
   Choose a 9-inch coil zipper in a contrasting color so you can clearly see your stitching placement.
3. 3
   Pin the zipper to the top edge of the front piece, right sides together, with the zipper teeth facing down. Sew with a zipper foot, stopping and moving the pull as needed.
4. 4
   Attach the back piece to the other side of the zipper tape the same way, right sides together.
5. 5
   Open the zipper halfway (this is your turning gap). Fold the pouch right sides together and sew around the three remaining sides with a ⅝-inch seam allowance.
6. 6
   Clip the corners diagonally to reduce bulk, then turn right side out through the open zipper.
7. 7
   Press the pouch flat and topstitch along the zipper edge on both sides for a clean, professional finish.
8. 8
   Test the zipper — open and close it 10 times. Check that the teeth align, the pull moves smoothly, and no fabric is caught.

🌟 Tips & Troubleshooting
