How to Make a Serged Edge Seam

A serged edge seam is a professional and durable seam finish commonly used in garment construction. It not only joins fabric pieces together but also prevents fraying, making it ideal for knit and woven fabrics alike. If you're new to using a serger (also called an overlock machine) or looking to refine your technique, this guide will walk you through everything you need to know.

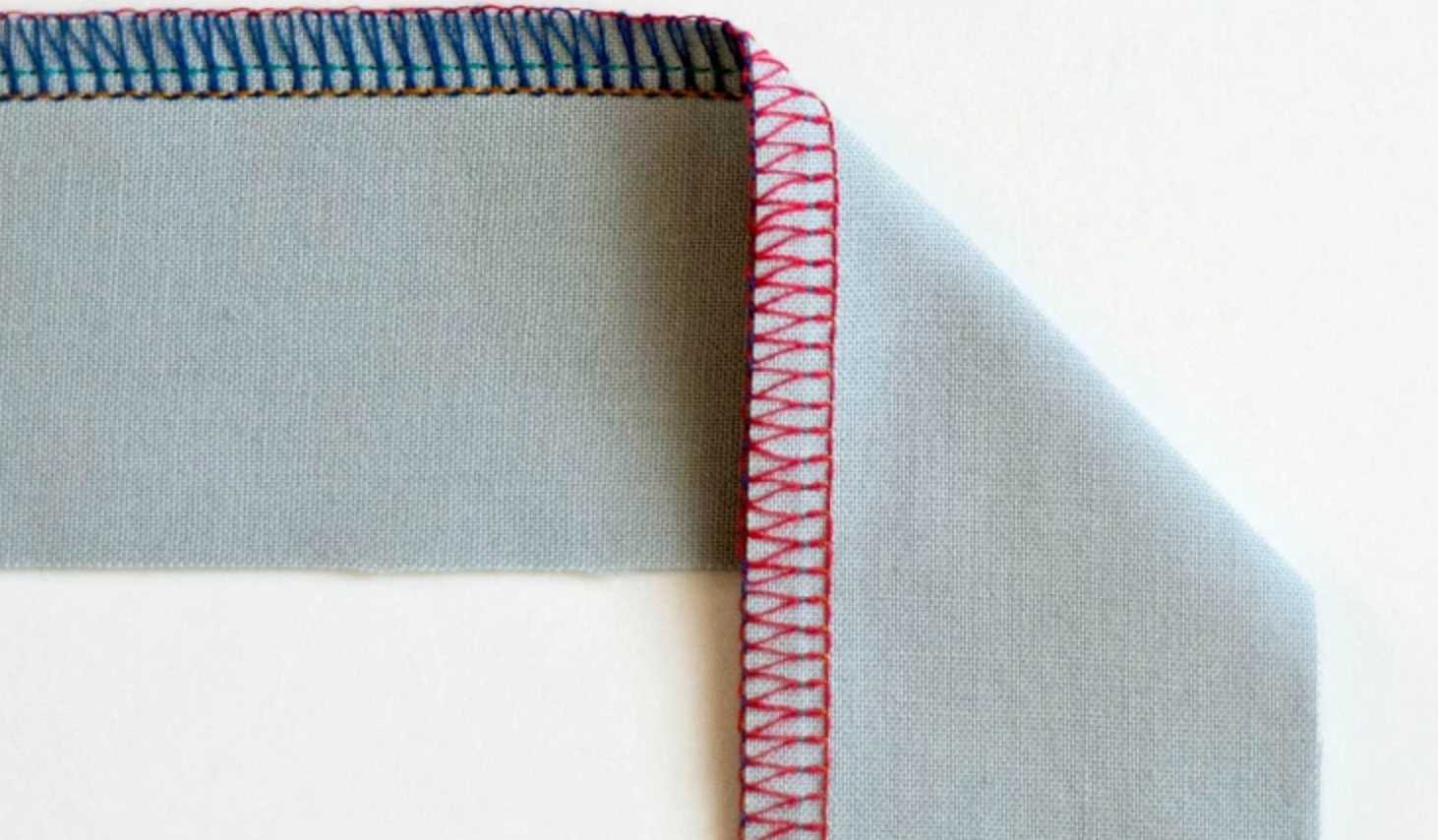

What Is a Serged Edge Seam?

A serged edge seam is created using a serger machine, which trims the fabric edge while simultaneously stitching over it with multiple threads. This forms a secure, stretchy seam and gives a clean, finished look on the inside of garments.

Tools and Materials You'll Need

• Serger (Overlock Machine) – 3-thread or 4-thread setup
• Fabric – Woven or knit, depending on your project
• Sewing pins or clips – To secure fabric before serging
• Fabric scissors or rotary cutter – For precise cutting
• Thread – Serger thread in matching or contrasting color
• Measuring tape or ruler – For seam allowances
• Marking tool (optional) – Fabric-safe chalk or pen

Threading Your Serger

Before starting, thread your serger correctly:

• Follow the threading diagram on your machine (or check the manual)
• Most sergers have color-coded guides
• For a basic serged edge seam, use a 3-thread or 4-thread overlock stitch:
  • 3-thread: Good for finishing raw edges and lightweight seams
  • 4-thread: Stronger and better for seams that will be stretched or worn

Tip: Always test your stitch on a scrap of your project fabric before starting.

Step-by-Step: Making a Serged Edge Seam

Step 1: Prepare the Fabric

• Wash and press the fabric to preshrink and smooth out wrinkles.
• Cut pieces with attention to grainline and pattern alignment.
• Mark seam allowances if needed.

Step 2: Align Fabric Pieces

• Place the two fabric pieces right sides together.
• Align the edges to be seamed.
• Pin or clip the fabric layers together away from the edge (sergers cut as they sew, so pins too close can break a blade or needle).

Step 3: Adjust Settings on Your Serger

• Stitch length: 2.5–3.0 is typical for seams
• Differential feed: Adjust depending on fabric type (higher settings for knits to avoid stretching, lower for gathers)
• Knife blade: Ensure it's engaged if trimming is needed

Step 4: Start Serging

• Position the fabric edge just under the presser foot.
• Gently guide the fabric while the machine trims and stitches the edge.
• Do not pull or push the fabric—let the feed dogs do the work.

Tip: Keep a consistent seam allowance. Most sergers have guides etched on the plate.

Step 5: Finish the Seam

• At the end, serge 2–3 cm off the fabric to create a thread tail.
• Tie off the thread chain or weave it back into the stitches using a tapestry needle or latch hook.

Get The Supply List By Clicking Here

Understanding Serger Tension

Tension is the most misunderstood aspect of serger operation—and the most important. Unlike a sewing machine with just one upper tension dial, a serger has three or four separate tension controls: one for each thread. Getting them balanced is the key to a clean, professional stitch.

The Three (or Four) Tension Controls

• Left needle tension: Controls the left needle thread (used in 4-thread and some 3-thread setups). Affects the straight stitch line on the left side of the seam.
• Right needle tension: Controls the right needle thread. Affects the straight stitch line closest to the fabric edge.
• Upper looper tension: Controls the thread that loops over the top of the fabric edge. If too loose, loops will hang off the edge; if too tight, the lower looper thread will be pulled to the top.
• Lower looper tension: Controls the thread that loops under the fabric edge. If too loose, loops will hang below; if too tight, the upper looper thread will be pulled underneath.

What a Balanced Stitch Looks Like

• The upper and lower looper threads meet exactly at the fabric edge—neither pulling to the top nor the bottom
• The needle thread(s) form a straight, even line of stitching on the fabric surface
• The stitch lies flat without puckering, looping, or pulling

Diagnosing Tension Problems

Upper looper thread visible on the underside of the fabric:
Upper looper tension is too tight, or lower looper tension is too loose. Try tightening the lower looper tension by 1–2 numbers first.

Lower looper thread visible on the top of the fabric:
Lower looper tension is too tight, or upper looper tension is too loose. Try loosening the lower looper tension.

Needle thread loops on the underside:
Needle tension is too loose. Increase needle tension slightly and test on a scrap.

Puckering along the seam:
Needle tension is too tight for the fabric weight, or the stitch length is too short. Reduce needle tension and/or increase stitch length.

Stitch falls off the fabric edge:
The stitch width may be too wide for the fabric, or the looper tensions are too loose. Reduce stitch width and tighten looper tensions slightly.

The Golden Rule of Serger Tension

Always adjust one tension dial at a time, test on a scrap, and evaluate before making another change. Changing multiple tensions at once makes it impossible to know which adjustment fixed (or caused) the problem. Start with the looper tensions before touching the needle tensions—most stitch appearance issues originate in the loopers.

Differential Feed: What It Does and How to Use It

Differential feed is one of the most powerful—and most underused—features on a serger. It controls the ratio between the front feed dogs (which pull the fabric in) and the rear feed dogs (which push the fabric out). Adjusting this ratio changes how the fabric behaves as it feeds through the machine.

Understanding the Settings

• Setting of 1.0 (neutral): Both sets of feed dogs move at the same rate. Use for most woven fabrics and stable knits.
• Setting above 1.0 (e.g., 1.5–2.0): The front feed dogs move faster than the rear, pushing more fabric in than is being pulled out. This eases the fabric, preventing stretching. Use for:
  • Stretchy knits (jersey, spandex, ribbing)
  • Bias-cut edges
  • Curved seams that tend to stretch out of shape
• Setting below 1.0 (e.g., 0.7–0.9): The rear feed dogs move faster, stretching the fabric slightly as it feeds through. This creates a gathered or ruffled effect. Use for:
  • Creating lettuce-edge hems on knits
  • Gathering lightweight fabric
  • Decorative ruffled edges

Differential Feed by Fabric Type

Student tip: If your serged knit seam comes out wavy or stretched, increase the differential feed before touching the tension. Wavy edges on knits are almost always a differential feed issue, not a tension issue.

Thread Types for Serging

Not all thread is created equal—and sergers are particularly sensitive to thread quality and type. Using the wrong thread can cause tension problems, thread breakage, and poor stitch quality even on a perfectly adjusted machine.

Serger / Overlock Thread (Cone Thread)

The standard thread for serging. Sold on large cones (typically 1,000–3,000 yards) rather than small spools. Sergers use thread at a much faster rate than sewing machines—a single project can use hundreds of yards—so cone thread is both practical and economical. Available in polyester, cotton, and blended varieties.

• Polyester cone thread: The most common choice. Strong, slightly stretchy, colorfast, and works on virtually all fabric types. Best all-purpose option for most students.
• Cotton cone thread: Less stretch than polyester. Good for quilting and natural fiber garments where you want the thread to behave like the fabric. Not ideal for knits.

Woolly Nylon (Texturized Nylon)

A soft, fuzzy, highly elastic thread that expands to fill the stitch after sewing. It's not actually wool—the name refers to its texture. Woolly nylon is ideal for:

• Swimwear and activewear seams that need maximum stretch
• Rolled hems on lightweight fabrics (gives a soft, filled edge)
• Lingerie and underwear elastic application
• The loopers (not the needle) for maximum coverage and softness against skin

Note: Woolly nylon requires slightly looser tension than regular thread because it expands after stitching. Test on a scrap and reduce looper tension by 1–2 numbers from your usual setting.

Monofilament / Clear Thread

A nearly invisible nylon or polyester thread. Useful in the needle position when you want the stitch line to disappear into the fabric. Not recommended for loopers—it can be scratchy against skin and doesn't fill the stitch edge well.

Decorative Thread

Metallic, variegated, or specialty threads can be used in the upper looper for decorative serged edges and flatlock seams. These threads are often thicker and more fragile than standard serger thread, so reduce the machine speed and loosen the upper looper tension when using them.

Thread Weight and the Needle Position

The needle thread(s) in a serger form the straight stitch line and bear the most stress in the seam. Always use a strong, smooth thread in the needle positions—save decorative or specialty threads for the loopers where they're visible but under less tension.

Serger Seam Types: Beyond the Basic Overlock

Once you're comfortable with the basic serged edge seam, a whole range of specialized seam types opens up. Each has specific uses and requires different machine settings.

4-Thread Overlock Seam

The strongest and most common serged seam for garment construction. Uses two needles and two loopers. The two needle threads create two parallel lines of straight stitching, while the loopers wrap the edge. Best for: T-shirts, activewear, dresses, pants—any garment seam that needs strength and stretch.

3-Thread Overlock Seam

Uses one needle and two loopers. Produces a slightly narrower, more flexible stitch than the 4-thread. Best for: finishing raw edges on woven fabrics, lightweight knit seams, and decorative edge finishing.

Rolled Hem

A narrow, tightly rolled edge finish created by adjusting the stitch finger (a small pin on the stitch plate) and tightening the lower looper tension significantly. The fabric edge rolls under itself and is encased in thread. Best for:

• Hemming chiffon, silk, and lightweight fabrics
• Finishing napkins, scarves, and handkerchiefs
• Decorative edges on ruffles

To create a rolled hem: disengage or remove the stitch finger (consult your manual), tighten the lower looper tension until the fabric edge rolls, and use a short stitch length (1.0–1.5mm). Woolly nylon in the lower looper gives a beautifully filled, soft rolled edge.

Flatlock Seam

A seam where the stitching lies completely flat when the fabric is opened out. Created by loosening the needle tension significantly so the stitch pulls flat. Can be sewn with the right or wrong sides together for different decorative effects:

• Right sides together (ladder side out): Shows the ladder-like needle thread on the outside—a sporty, athletic look used in activewear.
• Wrong sides together (loops side out): Shows the looper loops on the outside—a softer, decorative look.

Best for: activewear, yoga pants, swimwear, and any garment where bulk-free, flat seams are important.

Safety Stitch

A combination of a 2-thread chain stitch (for seam strength) and a 2-thread overlock (for edge finishing), sewn simultaneously. This is the stitch used in most ready-to-wear garment manufacturing. It requires a 5-thread serger. Best for: heavy-duty garments, denim, workwear, and any application where maximum seam strength is needed.

Mock French Seam (Serger Method)

A French seam encloses the raw edges inside the seam for a completely clean finish—traditionally done on a sewing machine. The serger mock version achieves a similar look faster:

1. Serge each raw edge separately (do not join the pieces yet).
2. Place fabric pieces wrong sides together and sew a seam on your sewing machine.
3. Press the seam to one side. The serged edges are now enclosed and the seam looks clean from both sides.

Best for: lightweight wovens, blouses, and garments where the inside finish matters.

Troubleshooting Guide

Even experienced sewists run into serger problems. Here's a systematic guide to the most common issues and how to fix them.

Skipped Stitches

Likely causes: Dull or wrong-type needle, needle not inserted all the way up into the clamp, incorrect threading, or a timing issue.
Fix: Change the needle first—this resolves skipped stitches in the majority of cases. Make sure the needle is pushed fully up into the clamp and the flat side faces the correct direction (usually the back). Rethread the machine completely if changing the needle doesn't help.

Thread Breaking

Likely causes: Tension too tight, thread caught on the spool or cone, a rough spot in the threading path, or poor-quality thread.
Fix: Check that the thread unwinds freely from the cone without catching. Reduce tension on the breaking thread by 1–2 numbers. Run your finger along the threading path to feel for burrs or rough spots on thread guides. Replace cheap or old thread—brittle thread breaks under serger speeds.

Wavy or Stretched Edges on Knits

Likely causes: Differential feed set too low, or the sewist is pulling the fabric as it feeds.
Fix: Increase differential feed to 1.5–2.0. Let the machine feed the fabric—guide it gently without pulling. If the problem persists, also check that the presser foot pressure is appropriate for the fabric weight.

Puckering on Woven Fabrics

Likely causes: Needle tension too tight, stitch length too short, or differential feed set above 1.0 on a stable woven.
Fix: Reduce needle tension, increase stitch length slightly (try 3.0mm), and set differential feed to 1.0 for woven fabrics.

Uneven or Jagged Cut Edge

Likely causes: Dull cutting blade, fabric being pushed into the blade at an angle, or the blade not properly engaged.
Fix: Replace the cutting blade (upper and lower blades work together—replace both if one is dull). Make sure you're guiding the fabric straight into the machine without angling it. Check that the blade is locked in the engaged position.

Thread Chain Breaking at the Start

Likely causes: Starting to serge without a thread chain, or the fabric edge catching in the machine at the start.
Fix: Always begin with a 3–4 inch thread chain hanging from the machine. Hold the chain taut behind the presser foot as you begin feeding the fabric. This prevents the threads from tangling at the start of the seam.

Loops Hanging Off the Fabric Edge

Likely causes: Looper tension too loose, or stitch width too wide for the fabric.
Fix: Tighten the looper tension(s) by 1–2 numbers and test. If loops persist, reduce the stitch width slightly so the looper thread wraps more tightly around the edge.

Machine Jams or Fabric Won't Feed

Likely causes: Thread tangled in the knife area or under the presser foot, lint buildup in the feed dogs, or the presser foot pressure too high for lightweight fabric.
Fix: Stop immediately—do not force the fabric. Raise the presser foot, carefully cut and remove tangled thread, and clean the knife and feed dog area with a brush. Reduce presser foot pressure for lightweight fabrics.

Common Seam Variations

• Serged Seam with Reinforcement: After serging, topstitch on a sewing machine for added strength.
• Flatlock Seam: Lay fabric edges side by side or overlap slightly and use a flatlock setting (usually 2- or 3-thread) for decorative, flat seams.

Care and Maintenance

• Clean your serger regularly to remove lint—especially around the knife, feed dogs, and looper area.
• Oil your machine as instructed in the manual (not all sergers require oiling—check first).
• Replace needles every 8–10 hours of sewing time, or at the start of each new project.
• Replace cutting blades when edges become jagged or the machine starts chewing fabric.

Best Practices & Tips

• Always test settings on scrap fabric before starting your project.
• Change thread tensions if the stitch loops are uneven or threads pull too tight.
• Adjust one setting at a time so you can identify what changed.
• Keep a sewing journal with tension and differential feed settings that work for your favorite fabrics—you'll thank yourself later.

When to Use a Serged Edge Seam

• Garments (T-shirts, dresses, pants, activewear)
• Home decor (pillowcases, curtains)
• Stretchy or fray-prone fabrics (knits, rayons, chiffon)
• Projects requiring strong, clean seams with a professional inside finish

Glossary of Serger Parts

New to the serger? Here's a plain-language guide to every major component you'll encounter on your machine.

• Upper Looper: A curved metal arm above the needle plate that carries one thread over the top of the fabric edge, interlocking with the lower looper thread to wrap the edge. The upper looper thread is usually the most visible on the top of the finished stitch.
• Lower Looper: A curved metal arm below the needle plate that carries one thread under the fabric edge, interlocking with the upper looper thread. The lower looper thread is visible on the underside of the stitch.
• Needle(s): Sergers use one or two needles depending on the stitch type. The needles form the straight stitch line(s) that run along the seam. Always use the needle type and size specified for your machine—serger needles are often different from standard sewing machine needles.
• Needle Plate (Stitch Plate): The flat metal plate below the presser foot with openings for the needles and feed dogs. Contains the stitch finger (a small pin that determines stitch width) and seam allowance guide markings.
• Stitch Finger: A small metal pin on the needle plate around which the looper threads wrap to form the stitch. For a rolled hem, the stitch finger is disengaged or removed so the fabric edge rolls under itself.
• Cutting Blade (Upper and Lower Knife): Two blades—one fixed (lower) and one moving (upper)—that work together like scissors to trim the fabric edge as you serge. The upper blade moves up and down; the lower blade is stationary. Both can be replaced when dull.
• Knife Disengagement Lever: A lever or button that disengages the cutting blade so you can serge without trimming the fabric edge. Useful when you want to finish an edge without removing any fabric.
• Feed Dogs: The ridged metal teeth beneath the needle plate that grip and advance the fabric. Sergers have two sets of feed dogs (front and rear) whose speed ratio is controlled by the differential feed setting.
• Differential Feed Dial: Controls the ratio between the front and rear feed dogs. Settings above 1.0 ease the fabric (preventing stretch on knits); settings below 1.0 stretch the fabric (creating gathers or lettuce edges).
• Presser Foot: Holds the fabric flat against the feed dogs as it feeds through the machine. Serger presser feet are interchangeable for different tasks (standard foot, rolled hem foot, gathering foot, etc.).
• Presser Foot Pressure Dial: Adjusts how firmly the presser foot presses down on the fabric. Heavier fabrics need more pressure; lightweight or delicate fabrics need less to avoid distortion.
• Thread Tension Dials: Separate dials (usually 3–4) that control the tension of each individual thread—upper looper, lower looper, left needle, and right needle. Balanced tension produces a stitch where the looper threads meet exactly at the fabric edge.
• Thread Guides and Tension Discs: A series of hooks, eyelets, and disc pairs that direct each thread along its correct path from the cone to the looper or needle. Each thread must pass through every guide in the correct sequence.
• Cone Holders / Spool Pins: The pins at the back or top of the machine where thread cones sit. Most sergers have 3–5 cone holders. Thread nets (small mesh covers) can be placed over cones to control how thread unwinds at high speed.
• Handwheel: The large wheel on the right side of the machine. Turn it toward you to manually lower and raise the needles—useful for starting a seam precisely or clearing a jam.
• Stitch Length Dial: Controls how long each stitch is, measured in millimeters. Longer stitches (3.0–4.0mm) for basting or heavy fabrics; shorter stitches (1.0–2.0mm) for rolled hems and fine fabrics.
• Stitch Width Dial: Controls how wide the overlock stitch is—essentially how far the looper threads extend from the needle line to the fabric edge. Wider stitches give more coverage; narrower stitches are used for rolled hems and fine fabrics.
• Thread Chain: The length of interlocked thread that the serger produces before and after the fabric. Always start with a thread chain and hold it taut when beginning a seam to prevent tangling.
• Latch Hook / Tapestry Needle: A small tool used to weave thread tails back into the finished stitch to secure them—the serger equivalent of backstitching.

A serged edge seam not only strengthens your sewing projects but also gives them that polished, store-bought look. Once you get comfortable with your serger, you'll find it hard to go back to traditional seam finishes—especially for knits and activewear.

Have questions about using your serger or specific fabrics? Drop them in the comments and I'll help you troubleshoot! Happy stitching!
