Sewing machines may look complex at first glance, but at their core, they rely on a beautifully synchronized dance between thread, needle, and hook. If you've ever wondered how a sewing machine turns two spools of thread into a secure stitch, let’s break it down.
Get The Suplie List By Clicking Here
The Basics: Upper Threading and Lower Threading
At the heart of every sewing machine is a system of two threads: the upper thread and the lower thread. These threads interlock to form a stitch, and each has a specific pathway through the machine.
Upper Threading
The upper thread begins on a spool mounted on top of the machine. It travels through a series of tension discs (which control thread tightness), a take-up lever (which moves the thread up and down with the needle), and finally through the eye of the needle. Proper threading of this path is crucial—any misstep can lead to poor stitch quality or thread breakage.
Lower Threading (The Bobbin)
The lower thread is wound onto a small spool called a bobbin, which sits in a case below the needle plate. This bobbin is housed in either a front-loading or drop-in bobbin system. The machine's hook mechanism spins around the bobbin to catch the upper thread and create stitches.
The Dance of Timing
Timing is everything in a sewing machine. If the needle and the hook are even slightly out of sync, the machine won’t sew correctly.
Here’s what needs to happen:
As the needle moves down into the fabric, it carries the upper thread with it.
Just as the needle starts to rise again, it forms a small loop of thread at the back.
At that precise moment, the rotating hook (part of the lower mechanism) swoops in to catch this loop.
The hook pulls the loop around the bobbin, entangling the upper and lower threads.
If this timing is even a fraction of a second off, the hook might miss the loop altogether—leading to skipped stitches or a jammed machine.
Get The Suplie List By Clicking Here
Making the Stitch: The Lockstitch
Most home sewing machines use a type of stitch called the lockstitch. This stitch is strong, versatile, and formed by locking the upper and lower threads together in the fabric.

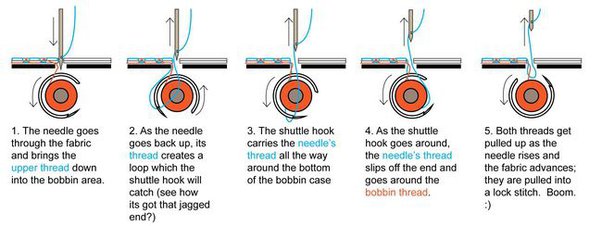

The sequence:
1. The needle punctures the fabric, carrying the upper thread down.
2. As the needle begins to rise, it creates a loop.
3. The rotating hook catches this loop and pulls it around the bobbin case.
4. The upper thread wraps around the bobbin thread.
5. The take-up lever pulls the upper thread tight, locking the two threads in the fabric.
6. The feed dogs move the fabric forward for the next stitch.
This all happens incredibly fast—many machines can make hundreds or even thousands of stitches per minute. Despite the speed, the process remains precise.
Why It Matters
Understanding how upper and lower threading works, and how timing affects stitch formation, can help troubleshoot common problems like:
Skipped stitches
Loose or tight threads
Bird’s nests under the fabric
Broken needles or thread
When you know what’s happening under the hood, you're better equipped to adjust tension, rethread properly, or even time the machine (if you're feeling ambitious).
---
A sewing machine is a marvel of mechanical engineering. With just two threads, a needle, and a hook, it creates precise, secure stitches that hold garments, quilts, and crafts together. The next time you hear the hum of your machine, you’ll know just how much coordination goes into every single stitch.
Get The Suplie List By Clicking Here
How an Oscillating Sewing Machine Works: A Peek Inside the Stitch-Making Magic
Sewing machines are mechanical wonders — especially when you realize they create precise, strong stitches with nothing more than a needle, some thread, and a clever system of moving parts. One of the most common mechanisms found in traditional machines is the oscillating hook system.
In this post, we’ll unravel the mystery of how an oscillating sewing machine works to form a lockstitch — one of the most common and durable stitches in sewing.
---
What Is an Oscillating Hook Sewing Machine?
The term oscillating hook refers to the movement of the hook mechanism beneath the needle plate. Instead of rotating continuously like in a rotary hook system, the hook rocks back and forth (or "oscillates") in a semi-circular motion.
This system is often found in older machines and many mechanical models. It’s known for being sturdy, easy to maintain, and ideal for heavy-duty or beginner machines.
---
Let’s Break It Down: Step-by-Step Stitch Formation
Here's how an oscillating sewing machine creates a lockstitch — the basic stitch you see on most garments:
---
1. The Needle Drops
The process begins when the needle moves down, carrying the top thread with it through the fabric.
---
2. The Needle Thread Forms a Loop
As the needle reaches its lowest point and starts to rise again, a small loop of thread forms at the back of the needle. This is due to the shape of the needle and the tension of the thread.
---
3. The Oscillating Hook Swings In
Here comes the magic: the oscillating hook (a curved metal piece just below the needle plate) moves side to side in a semi-circle. It swings in, catches the loop of top thread behind the needle, and pulls it around the bobbin case.
---
4. The Threads Interlock
The hook guides the top thread around the bobbin, where it interlocks with the bottom thread (bobbin thread). This interlocking action is what creates the strong and secure lockstitch.
---
5. The Take-Up Lever Pulls the Thread Tight
As the needle continues to rise, the take-up lever pulls the top thread upward, tightening the stitch and drawing any slack back up into the machine.
---
6. The Feed Dogs Move the Fabric
Just as the stitch finishes, the feed dogs — the small metal teeth under the fabric — move the fabric forward by one stitch length, setting things up for the next cycle.
And then… it all repeats.
---
Advantages of an Oscillating Hook System
Reliable and durable: Fewer parts to break, great for beginners.
Easier to maintain: You can often clean and oil it yourself.
Good for heavy fabrics: Works well for denim, canvas, or upholstery.
---
Limitations to Know
Slower than rotary systems: Because the hook has to reverse direction, it's not as fast.
A bit noisier: You might hear a soft clunk or clack during stitching.
Smaller bobbin case area: Slightly trickier to thread than front-loading rotary systems.
---
The oscillating sewing machine might not be the flashiest model on the market, but it’s a true workhorse. Its straightforward, back-and-forth hook motion produces strong, even stitches that can handle a wide range of fabrics. Understanding this mechanism not only helps you sew smarter — it also makes you appreciate the quiet genius humming away beneath your needle plate.
Curious how your machine compares or wondering if you have an oscillating or rotary hook. Drop your model in the comments and we’ll help you figure it out.
